Product Description

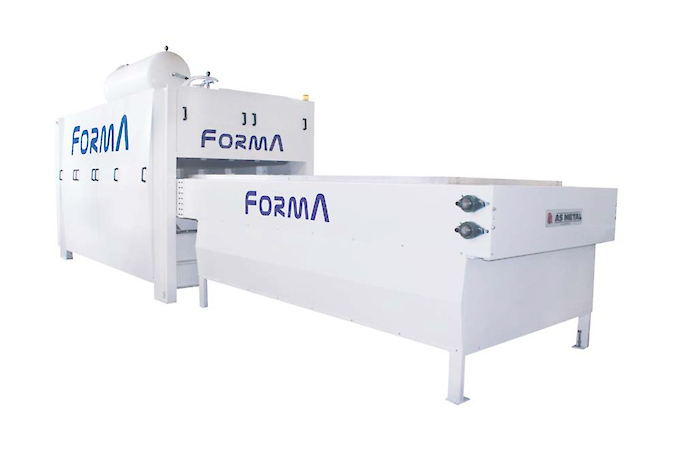

Designed primarily as a vacuum-membrane press, this model has all the features of the Transform model.

Table movements are also automatic in the Forma model, which is produced as 1400 x 3200 mm and double table as standard. Therefore, this model operates fully automatically, if desired, it is also possible to manually control the entire machine by switching to manual mode.

This machine, which works with a total pressure of 6 + 1 kg / cm2, gives excellent results for all kinds of matte PVC cover and natural veneer cover works of 0.2 mm, 0.4 mm and 0.6 mm thickness.

It is specially designed for high gloss cover works with a pressure of 6 + 1 kg / cm2. This ensures that glossy PVC foils that are more difficult to shape are pressed under lower temperatures. Adhesive PVC foil does not lose its brightness, surface so called the orange surface disappears and gives excellent results.

 TRANSFORMPlus (ops.)FORMAPlus (Ops.)
Plate Dimensions1400x2500 mm1400x3200 mm
Vacuum Table Dimensions1260x2360 mm1220x3020 mm
Cylinder Diameter90 mm120 mm
Number of Cylinders68
Press Force120 tons220 tons
Specific Pressure3.5 + 1 kg / cm 26 + 1 kg / cm 2
