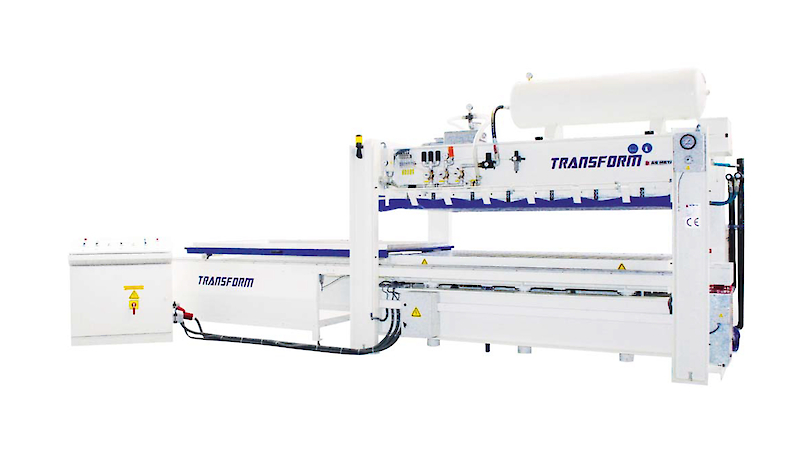

As standard single machine, request and are produced as a pair of trays. Standard tray size 1400 x 2500 mm’dir. Tray movements made by hand. The operating cycle takes place completely automatically during Printing.

in total, 3.5 +1 kg / cm2’This model works with light pressure, 0.2 mm ve 0.4 kaiığnlıg mm PVC foil in all kinds of mat and is ideal for natural veneer cover jobs.

Also in the medium quality glossy PVC (high gloss) also be used to cover jobs. necessary to machine the upper plate removably mounted on the rubber-silicon membrane suspended after a few minutes.

Thanks to the auxiliary air chamber, No need to install on the machine is to dismantle the membrane and membrane-membrane studies. The transition between operating formats, easily done with a button on the machine.

GENERAL FEATURES

Carries the engraved thermoplastic foil, veneer or the flat surface glued to panel. vacuum, membrane, Membrane presses the vacuum-operated in different functions.

Vacuum-saving feature allows the membrane by allowing material to be used as part of pvc’ıer. The oil-heated hotplates, Each serpentine or solid surface due to the special uniform heat distribution plate system is provided. Printing takes place during the operating cycle is completely automatic. For this multi-function machine is supported by a PLC. vacuum, to select the desired program type membrane or a wide variety of work modes are possible for the vacuum membrane. Memory may be made to the programs on the operating cycle and this provides great convenience for users. Different thickness and / or programs made for different types of PVC color after memorized, from now are easily installed and working memory can be initiated when desired.

All Transactions 7 inch touch screen and Turkish operated was made very easy for users with visual programming. Diaphragm or membrane-pressure selection is made with a single button on the control cabinet.
